Syncrowave® Welders

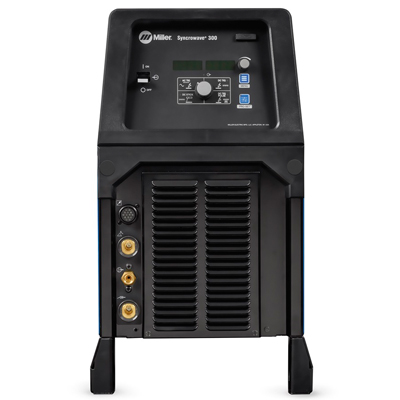

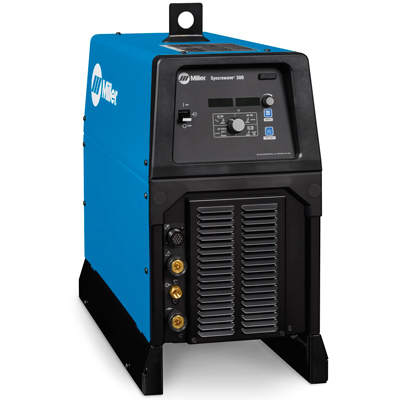

Syncrowave® 300

907782

For fabricators who need more TIG welding productivity and lower operating costs, new Miller Syncrowave machines are the energy efficient TIG welding power sources that make it easier for any welder to get more work done.

SPECIFICATIONS

PRODUCT LITERATURE

AD/4.25 Syncrowave 300 - English

PROCESSES

Aluminum Welding		Stick (SMAW)
TIG (GTAW)		TIG AC (GTAW-AC)
TIG DC (GTAW-DC)

GENERAL SPECIFICATIONS

Title	Syncrowave® 300 - Machine Only
Industries Interests	Construction Infrastructure Manufacturing
Material Thickness	Steel 0.012 in. (0.3 mm) - 1/2 in.(12.7 mm) Aluminum 0.015 (0.4 mm) - 3/8 in (9.5 m)
Weldable Materials	Aluminum Stainless Steel Steel
Input Voltage	208 V 220/230/240 V 460/480 V
Input Phase	1- and 3-Phase
Input Hz	50/60 Hz
Current Type	AC / DC
Max Open Circuit Voltage	60 VDC
Amperage Min	5 A
Amperage Max	300 A
Portability	Lift Eye (Standard) Running Gear / Cart (Optional)
Weld Output	CC

Net Width	15 in. (381 mm)
Net Height	29.4 in. (746 mm)
Net Length	24.6 in. (625mm0
Net Weight	101 lb. (45.8 kg)

FEATURES

Pro-Set™ Feature

Eliminates the guesswork when setting TIG weld parameters. Just one touch gives you the speed, convenience and confidence of preset controls.

Auto-Link

Circuit automatically links the power source to primary voltage being applied (208/240/480 V, single- or three-phase).

Simple to install

Accepts either single- or three-phase input power.

Small Footprint

Inverter-based power source provides full welding output from 240 V while drawing less than 30 amps.

Energy Efficient

Save up to 33 percent on energy costs versus outdated welding equipment.

Better Arc Performance

Deliver more stable arcs and better arc-starting characteristics, making it easy for any welder to get more work done and do better work.

Easy to use

Intuitive user interface is simple to understand making it easy to adjust parameters. This means less time training new employees so more work gets done.
