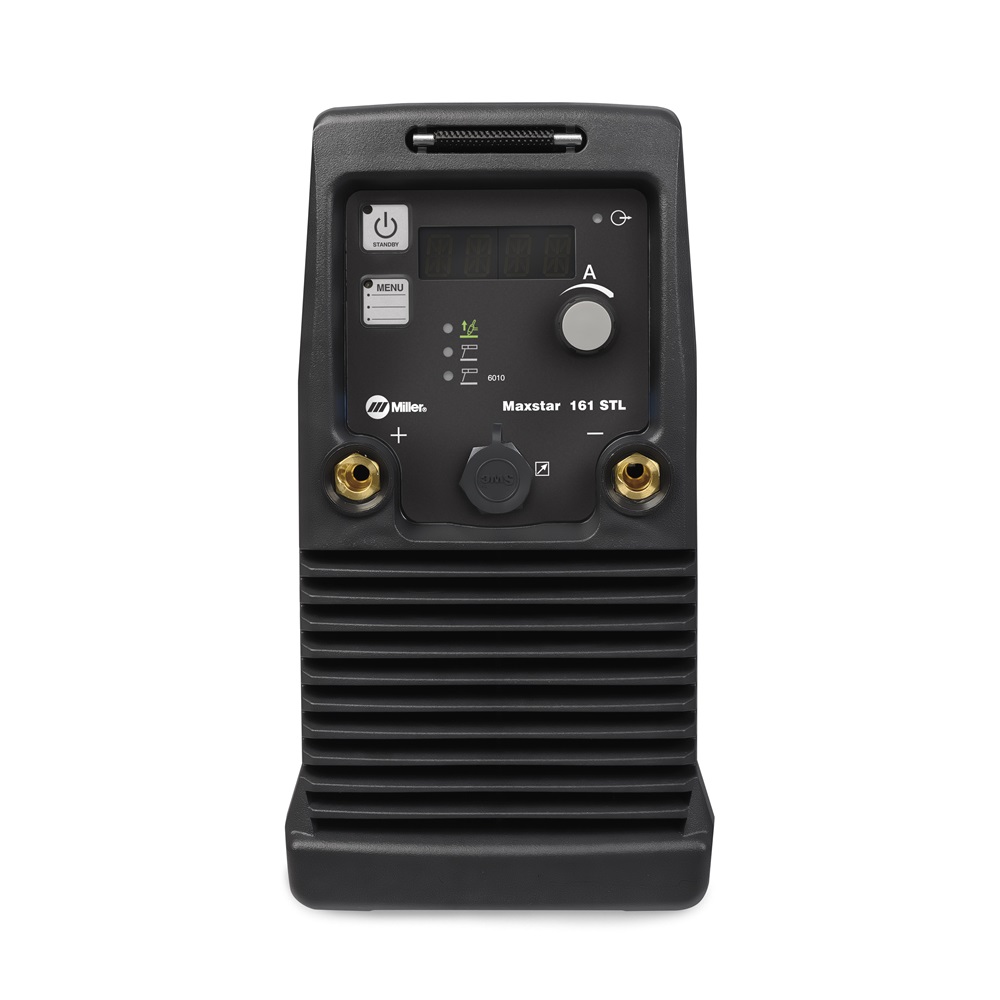

Maxstar® 161 STL

Maxstar® TIG Welders

Maxstar® 161 STL 120-240 V​

907710





Best of class - Provides maximum portability and performance in the most compact TIG/Stick packages in the industry. Dependability and performance all in one machine.





 SPECIFICATIONS





PRODUCT LITERATURE

 DC/27.5 Maxstar 161 Series - English



PROCESSES

Stick (SMAW) TIG (GTAW)
TIG DC (GTAW-DC)




GENERAL SPECIFICATIONS

Title

Maxstar® 161 STL 120-240 V

Industries Interests

Process pipe
Dairy industry
Food / beverage industry
Restaurant / kitchen repair
Experimental Aircraft
Shipboard installation / repair
Maintenance repair

Material Thickness

Steel 0.020 in. (0.5 mm) - 3/16 in. (4.8 mm)

Weldable Metals

Stainless Steel
Steel

Input Voltage

110/115/120 V
220/230/240 V

Input Phase

1-Phase

Input Hz

50/60 Hz

Current Type

DC

Max Open Circuit Voltage

48 VDC

Amperage Min

5 A

Amperage Max

160 A

Portability

Handle(s)
Strap

Weld OutputCC



Net Width

8.6 in (219 mm)

Net Height

13.6 in (346 mm)

Net Length

22 in (569 mm)

Net Weight

50 lb. (22.7 kg)





 FEATURES

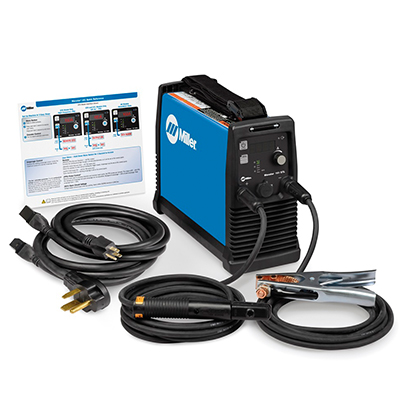

WHAT'S INCLUDED
  • Maxstar® 161 STL
  • 6.5 ft. (2 m.) primary cords for 120 V and 240 V
  • 13 ft. (4 m.) stick electrode holder with 25 mm. Dinse-style connector

  • 10 ft. (3 m.) work clamp with 25 mm. Dinse-stlye connector
  • Adjustable handle/shoulder strap
  • Quick Reference Guide



NOT INCLUDED
  • TIG Torch with 25mm. Dinse-style Connector
  • Remote Control (6-pin)

  • Regulator/flow gauge and gas hose



Use on 120 AND 240 Volt Input Power

Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without the use of any tools to allow your to common 120 and 240 volt power receptacles. Learn More

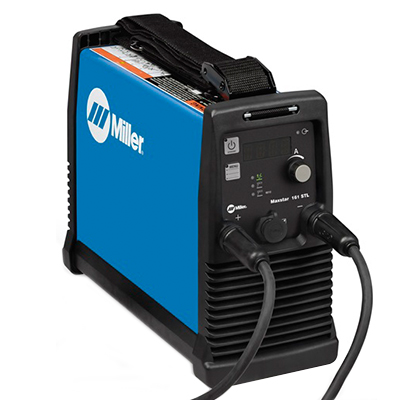

Compact Design Allows for Great Portability

Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this little inverter-based TIG/Stick machine can be taken from location to location.



Low Power Draw

By utilizing an inverter-based power source in the Maxstar® 161, superior arc starts and excellent weld puddle control are provided in both the TIG and Stick settings - all in a small, light-weight package.



Easy-to-Use

  1. Turn power on.
  2. Select Process: Lift-Arc TIG, Stick or 6010 Stick.
  3. Set amperage.

Then weld! It's easy as 1, 2, 3.



No More "Sticky" Electrodes

With Miller's Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes.



Conserve Your Electrodes

With the Stick-Stuck feature the machine detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode.



No Need For A Gas Valve On Your TIG Torch

With a built-in gas solenoid, the Maxstar® 161 eliminates the need for a bulky TIG torch with a gas valve.



5 AMP TIG Capability

Allows users to weld thinner materials than other machines in this category.



6010 Stick Electrode Capability

Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
