Diversion® TIG Welders

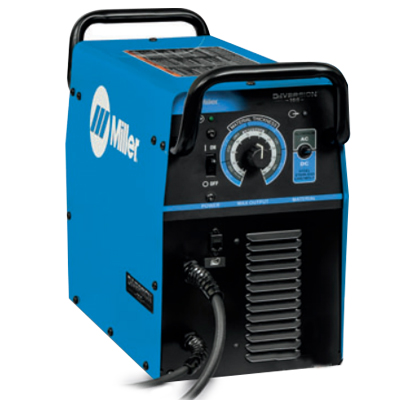

Diversion® 165 230 V

907626

The Personal User TIG machine, the Diversion 165 is an easy-to-understand inverter-based AC/DC machine. Only three switches to operate: a power switch, a material selection switch, and an ampeage control/material selection switch.

SPECIFICATIONS

PRODUCT LITERATURE

AD/1.5 Diversion 165 and 180 - English

PROCESSES

TIG (GTAW)		TIG AC (GTAW-AC)
TIG DC (GTAW-DC)		Aluminum Welding

GENERAL SPECIFICATIONS

Title	Diversion® 165 230 V
Industries Interests	Auto / Cycle (Racing, Customizing, Restoring) DIY / Home Hobbyist Farm and Ranch Metal Art / Sculptures Manufacturing
Current Type	AC / DC
Input Hz	50 / 60 Hz
Input Phase	1-Phase
Portability	Handle Running Gear / Cart (Optional)
Input Voltage	220 / 230 / 240 V
Max Open Circuit Voltage	80 VDC
Weldable Metals	Aluminum Mild Steel Stainless Steel
Amperage Min	10 A
Amperage Max	165 A
Material Thickness	Steel: 0.025 in (0.6mm) - 3/16 in (4.8 mm) Aluminum: 0.030 in (0.75 mm) - 3/16 in (4.8 mm)

Net Width	9.875 in (251 mm)
Net Height	17 in (432 mm)
Net Length	23.875 in (606.5 mm)
Net Weight	50 lb. (22.7 kg)

FEATURES

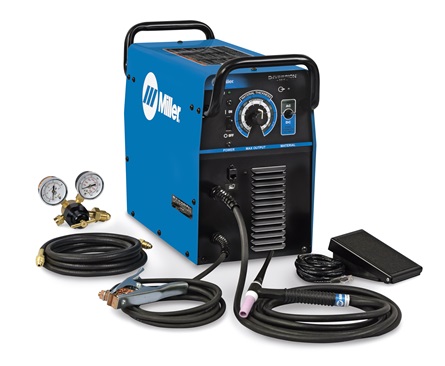

WHAT'S INCLUDED

Diversion® 165
6 ft. (1.8 m) primary cord w/ 50 A 230 V style plug
12.5 ft. (3.8 m) Weldcraft™ A-150 TIG torch

Regulator/ flow gauge and gas hose
RFCS-RJ45 remote foot control (300432)
12 ft. (3.7 m) work cable with clamp

NOT INCLUDED

Argon shielding gas
Personal safety products (helmet, gloves)

Filler rod

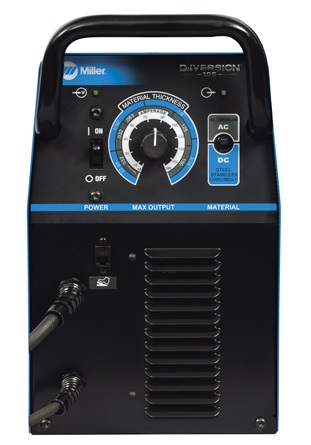

Easy-to-Understand Operator Interface

It's as easy as "1, 2, 3" to set your machine and start welding! 1. Power-up2. Select material type3. Set material thickness range.

Utilizes Latest Inverter Technology

By utilizing an inverter-based AC/DC power source, a more efficient (less energy is used) and consistent welding arc are provided compared to older transformer based TIG machines.

Portable

Whether it's in the shop, garage or at the race track, at 50 lbs it can be taken anywhere.

Dependable Arc Starts

Provides HF, non-contact arc starting to eliminate tungsten and material contamination time after time.

Reduce Noise, Maintenance and Operating Costs

Our Fan-On-Demand™ cooling system only operates when needed. This cuts down on fan noise and reduces power consumption and contaminants drawn into the machine.

Eliminate Waste of Expensive Shielding Gas

Our Auto-Postflow feature optimizes postflow time based on welding amperage. This allows for proper shielding of both the weld end zone and electrode every time without waste of gas or need for adjustment.

Fully Adjustable Amperage Setting

The full amperage range is available from 10-165 amps on both DC and AC output.

Torch Designed for Maximum Operator Comfort

The package comes standard with a Diversion Series foot control and Weldcraft WP-17 TIG torch. This 150 amp, air-cooled torch features a compact and durable design ideal for both the professional and hobbyist welder. The Diamond Grip head design has ergonomic contact points for thumb and fingers, provides a more comfortable grip, and reduces operator fatigue.

Diversion® 165
