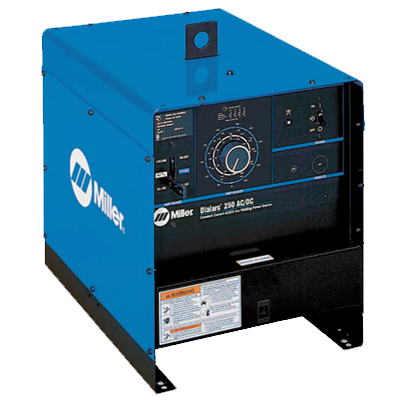

Dialarc® 250 AC/DC

Dialarc® Stick Welders

Dialarc® 250 AC/DC 200-208/230/460 V​  ​

907017





Offers versatility and is a flexible and easy-to-use stick machine. Made in USA.





 SPECIFICATIONS





PRODUCT LITERATURE

 AD/2.1 Dialarc 250 AC/DC - English



PROCESSES

Stick (SMAW) Air Carbon Arc Cutting and Gouging (CAC-A)



GENERAL SPECIFICATIONS

Title

Dialarc® 250 AC/DC 200-208/230/460 V

Industries Interests

Light Industrial Applications
Production Line Work
Plant Maintenance
Garage / Job Shops
Fabrication
Vocational School Training

Portability

Lift Eye (Standard)
Running Gear / Cart (Optional)

Current Type

AC / DC

Input Phase

1-Phase

Rated Output

AC: 225 A at 29 V, 30% Duty Cycle
DC: 175 A at 27 V, 50% Duty Cycle

Max Open Circuit Voltage

AC: 70
DC: 79



Net Width

19 in. (483 mm)

Net Height

24.25 in. (616 mm)

Net Length

28 in. (711 mm)

Net Weight

360 lbs. (163 kgs)



 FEATURES



Single-dial current control

Simplifies weld adjustments.



Infinite current control

Allows precise weld output adjustment; you always get the exact heat you need to produce a better weld.



High and low ranges for both AC and DC

Allow greater control of weld performance for changes in welding conditions.



Fully varnished magnetic amplifier technology

Provides lower maintenance, and outstanding product reliability with fewer moving parts.



Forced-draft cooling fan

Ensures a cooler running product, extending the life of the power source.



Superior 6010 and 7018 Stick welding performance

Offers a wide range of electrode versatility; welds difficult-to-weld metals



High output and duty cycle

Allows unit to handle nearly all of your Stick welding needs.



Industrial, weld output terminal cover



Optional remote weld output control

Provides current control without going back to the power source saving time and effort.
