VarioSynergic 5000

VarioSynergic

VarioSynergic 5000

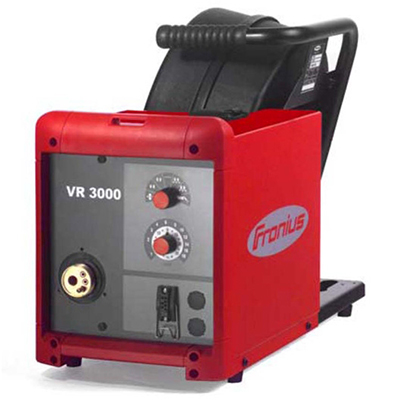

VarioSynergic is a microprocessor-controlled MIG/MAG welding system consisting of a power source, a wire feeder, a welding torch and a cooling unit. Synergic Mode make the system much easier to handle: just set the sheet thickness and the filler metal, and leave the power source to adjust everything else by itself. VarioSynergic is available in two different versions: a compact version with an integral wirefeeder, or with an external wirefeeder for portalble deployment.



VarioSynergic works with wire diameters of between 0.8mm and 1.6mm, has an inductance tap for CO2 welding, and welds flux-cored and all solid wires.



PRODUCT DETAILS



 TECHNICAL DATA



GENERAL DATA

Length

890 mm

Width

276 mm

Height

445 mm

Dimension / l

687 mm

Weight

32,7 kg





Welding current max.

500 A

Welding current min.

35 A

Welding current / Duty cycle [10min/40°C]

500 A / 25%

Welding current / Duty cycle [10min/40°C]

360 A / 60%

Welding current / Duty cycle [10min/40°C]

280 A / 100%

Open-circuit voltage

54 V

Mains voltage

3 X 400 V

Degree of protection

IP23





 WELDING PROPERTIES


The ignition process is reliable and absolutely jerk free: at the start of welding, the wire is fed more slowly and only gets up to speed once the arc has ignited.



The end-of-welding sequence is easy to define, with an adjustable wire burn-back.
