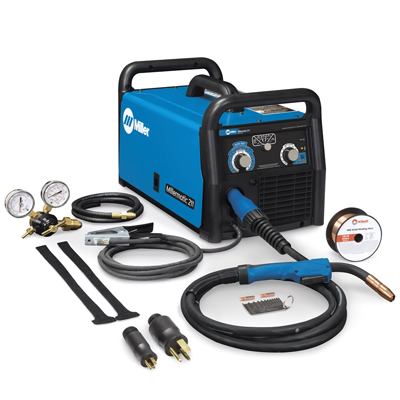

Millermatic® 211 MIG Welder

Millermatic® 211 MIG Welder

Millermatic® 211 MIG Welder ​

907614





Welds material from 24-gauge to 3/8 in thick in a single pass.





 SPECIFICATIONS





PRODUCT LITERATURE

 DC/12.58 Millermatic 211 - English



PROCESSES

MIG (GMAW) Flux Cored (FCAW)



GENERAL SPECIFICATIONS

Title

Millermatic® 211 MIG Welder

Industries Interests

DIY / Home Hobbyist
Farm and Ranch
Metal Art / Sculptures
Racing / Customizing / Restoring
Education / Training

Material Thickness

Mild Steel 24 ga. - 3/8 in.
Aluminum 18 ga - 3/8 in.

Weldable Metals

Aluminum
Stainless Steel
Steel

Input Voltage

110/115/120 V
220/230/240 V

Input Phase

1 Phase

Input Hz

50/60 Hz

Current Type

DC

Rated Output

150 A at 21.5 VDC,
40% duty cycle (240V)
115 A at 19.8 VDC,
20% duty cycle (120V)

Max Open Circuit Voltage

54 VDC

Amperage RangeAmperage Min Max 30 A - 230 A
Wire Feed SpeedIPM Range 60 IPM - 600 IPM
MMin Range 1.5 m/min - 15.2 m/min
Wire DiameterSolid Steel 0.024 in - 0.035 in
Stainless Steel 0.024 in - 1.2 mm
Flux Cored 0.03 in - 0.045 in
Solid Steel 0.6 mm - 0.9 mm
Stainless Steel 0.6 mm - 0.9 mm
Flux Cored 0.8 mm
Spool Size8 in (203 mm)
PortabilityHandle(s)
Running Gear / Cart (Optional)
Weld OutputCV



Net Width

11.25 in (285.75 mm)

Net Height

12.5 in (317.5 mm)

Net Length

20.5 in (559 mm)

Net Weight

38 lbs (45.4 kg)





 FEATURES





Advanced Auto-Set™
Advanced Auto-Set™ now includes five different wire/gas combinations and .024, .030 and .035-inch wires. The easiest welder to use just became more versatile.



Inverter Technology
Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.



Quick Select™ Drive Roll
Quick Select™ drive roll makes setup quicker by offering three grooves—two for different size solid wire and a third for flux-cored wire.



Auto Spool Gun Detect™
Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.

Fan-On-Demand™​
Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.

Multi-voltage plug (MVP™)​
Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.

New Drive System​
Angled cast-aluminum drive system with calibrated tension knob creates consistent feeding and easy setup for up to 15-foot MIG guns.

Smooth-Start™​
Smooth-Start™ provides a smooth, spatter-free start. It’s the best-starting machine in the small MIG machine category.

Generator Compatible
The Millermatic 211 will be able to operate and provide full output when powered by generators with 7000 Watt (7K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
