TransTig 1750 Puls

TransTig

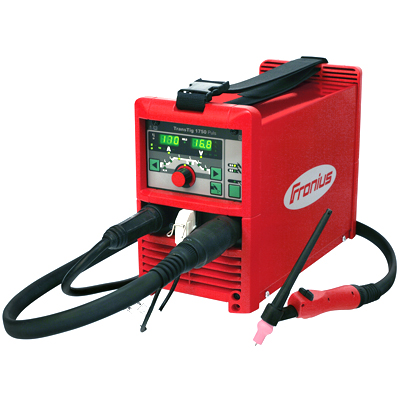

TransTig 1750 Puls





The TransTig 1750 Puls is a completely digitised TIG-DC power source with an output of 170 A. It is both light and robust, self-explanatory in operation and delivers maximum power from a 230 V grid. The pulse mode allows lower heat input during TIG welding, better gap-bridging ability and superb weld seam appearance.



PRODUCT DETAILS



 TECHNICAL DATA



GENERAL DATA

Length

430 mm

Width

180 mm

Height

280 mm

Weight

9,1 kg; 20.06 lb.





Welding current / Duty cycle [10min/40°C]

170 A / 35%

Welding current / Duty cycle [10min/40°C]

135 A / 60%

Welding current / Duty cycle [10min/40°C]

120 A / 100%

Open-circuit voltage

93 V

Mains voltage

230 V

Mains fuse

16 A

Degree of protectionIP23





 FUNCTIONS



TAC
With TAC, one spot is all it takes for tacking, because the pulsed arc sets the two weld pools in motion, making them jump together in next to no time, to make one single weld-pool. The TAC function is also very useful when welding light-gauge sheets without filler metal.



HF IGNITION
The touchless and gentle high-frequency ignition is the easiest option for igniting the arc.



TOUCHDOWN IGNITION
Touchdown ignition can be used in particular for sensitive application areas. This allows electromagnetic interference, which can occur during HF ignition, to be avoided.
