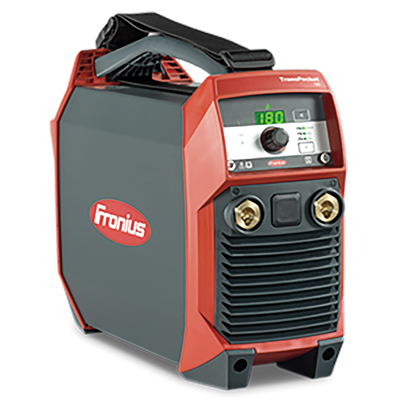

TransPocket 180

TRANSPOCKET

TransPocket 180






The new generation of TransPocket 150/180 devices brings a high degree of flexibility. The integrated PFC (Power Factor Correction) technology supports the use of extremely long mains leads of up to 100 m in length. The operating concept has also become even more intuitive. A 7-segment display makes it possible to quickly read off the parameters that have been configured. In addition, the display is slightly set back and therefore well protected against damage. Easily comprehensible setup settings are a tremendous help in simplifying operation.



PRODUCT DETAILS



 TECHNICAL DATA



GENERAL DATA

Length

435 mm

Weight

8,8 kg

Dimension / l

435 mm

Width

160 mm

Height

310 mm





Welding current / Duty cycle [10min/40°C]

180A / 40%

Welding current / Duty cycle [10min/40°C]

160A / 60%

Welding current / Duty cycle [10min/40°C]

120A / 100%

Open-circuit voltage

101V

Mains voltage

230V

Degree of protection

IP23





 FUNCTIONS



SOFTSTART

The SoftStart function ensures a stable arc at the start of welding and was specially developed for electrodes that are welded with a low welding current (basic electrodes).



ANTI-STICK

If a short circuit occurs that causes the electrode to stick during MMA welding, the power source is switched off immediately. This prevents the electrode from burning out.



HOTSTART

To make the electrode easier to ignite, the current at the power source is increased for a fraction of a second during ignition. The HotStart function was specially developed for welding with rutile and Cel electrodes.





 COUNTRY-SPECIFIC PRODUCT VARIANTS



NO GRID-VOLTAGE DEPENDENCE

The power sources are available in country-specific variants, meaning they can also be used in regions with differing mains voltages. For more information, please contact your local Fronius contact.
