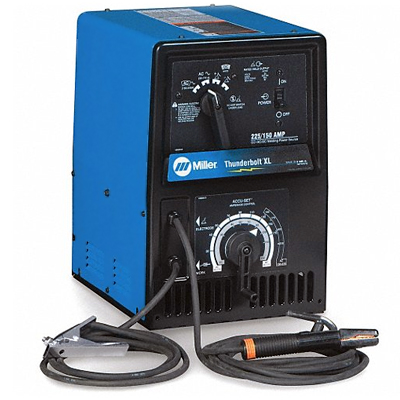

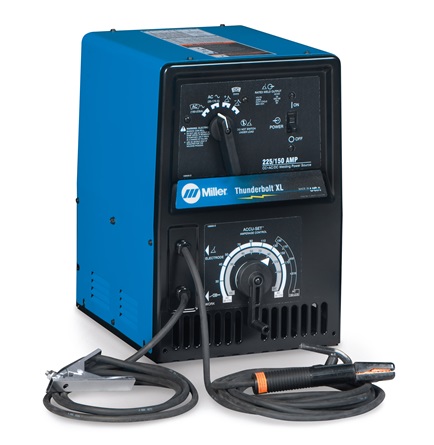

Thunderbolt® XL 225/150 AC/DC Stick Welder

903642

Economical AC/DC Stick welding power source expands welding options while still providing precise, dependable control to get the exact heat you need - always. Made in USA.

SPECIFICATIONS

PRODUCT LITERATURE

AD/8.0 Thunderbolt XL AC/DC - English

PROCESSES

AC/DC Stick (SMAW)

GENERAL SPECIFICATIONS

Title	Thunderbolt® XL 225/150 AC/DC Stick Welder
Industries Interests	Auto / Cycle (Racing, Customizing, Restoring) DIY / Home Hobbyist Farm and Ranch Metal Art / Sculptures Manufacturing Education / Training Fabrication Maintenance and Repair - In Plant
Current Type	AC / DC
Input Hz	50 / 60 Hz
Input Phase	1-Phase
Portability	Running Gear / Cart (Optional)
Input Hz	50/60 Hz
Current Type	AC / DC
Input Voltage	220 / 230 / 240 V
Max Open Circuit Voltage	80 VDC
Rated Output	AC: 225 A at 20% Duty Cycle DC: 150 A at 25V at 20% Duty Cycle
Weldable Metals	Mild Steel Stainless Steel
Amperage Range	30 DC - 160 DC 30 AC - 235 AC

Net Width	12.75 in (324 mm)
Net Height	18.75 in (476 mm)
Net Length	17.5 in (445 mm)
Net Weight	104 lbs (47.18 kgs)

FEATURES

WHAT'S INCLUDED

Thunderbolt XL AC/DC
10-ft. (3 m) work cable with clamp

15-ft. (4.5 m) No. 4 electrode cable with heavy-duty electrode holder
Power cord with 240 V plug

Infinite Current Control

Adjust output by as little as one-amp increments. Get the exact heat you need.

High DC Weld Output

Up to 150 amps available at 20 percent duty cycle.

Output Selector Switch

Quickly select AC, DCEP or DCEN without adjusting the output leads.
