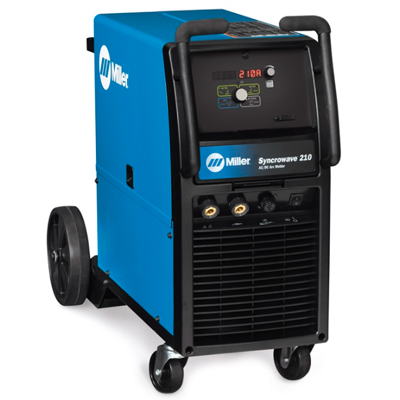

Syncrowave® 210

Syncrowave® Welders

Syncrowave® 210

907596





The easy-to-use Syncrowave® 210 provides legacy arc performance that allows you to expand your capabilities with an all-in-one package.





 SPECIFICATIONS





PRODUCT LITERATURE

 AD/4.6 Syncrowave 210 Series - English



PROCESSES

Stick (SMAW) Aluminum Welding
TIG AC (GTAW-AC)

TIG DC (GTAW-DC)

TIG (GTAW)



GENERAL SPECIFICATIONS

Title

Syncrowave® 210 TIG

Industries Interests
Racing / Customizing / Restoring
Construction
DIY / Home Hobbyist
Farm and Ranch
Infrastructure
Manufacturing
Metal Art / Sculptures
Boat / Yacht
High Purity Processing
Material ThicknessSteel 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm)
Aluminum 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm)
Weldable Materials

Aluminum
Stainless Steel
Steel

Input Voltage

110/115/120 V
208 V
220/230/240 V

Input Phase

1-Phase

Input Hz

50/60 Hz

Current Type

AC / DC

Max Open Circuit Voltage

47 VDC

Amperage Min

5 A

Amperage Max

210 A

PortabilityRunning Gear / Cart (Standard)
Weld OutputCC



Net Width

18.5 in

Net Height

31.5 in

Net Length

43 in

Net Weight

133.5 lbs





 FEATURES





5 Amp TIG Capability

Allows users to weld thinner materials than other machines in this category.



Pro-Set™ Feature (TIG)

Eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience, and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.
  • AC Balance Adjustability (TIG): Provides adjustable oxide removal which is essential for creating the highest quality aluminum welds.
  • Pulse Capability (TIG): Pulse feature ranging from 0 – 150 pulses per second for increasing puddle agitation, arc stability, and travel speeds while reducing heat input and distortion.

Learn More



Auto-Set™ (MIG)

A breakthrough control that automatically sets your welder to the proper parameters. Auto-Set offers all-in-one MIG minus the hassle of finding parameters.



6010 Stick Electrode Capability

When the competition snuffs out the Syncrowave 210 burns on, even with difficult to run electrodes used for less than ideal conditions. Increase the DIG setting for stiffer, more penetrating electrodes like E6010.


Low Power Draw

Inverter-based power source provides full welding output from 240 V while drawing less than 30 amps.



Easy-to-Use

1. Turn power on. 2. Select Process: AC TIG, DC TIG, DC Stick. 3. Set amperage or voltage based on material thickness. Then weld! It’s as easy as 1, 2, 3.



Use it on 120 AND 240 Volt Input Power

Using Miller’s Auto-Line™ technology, the Multi-Voltage Plug (MVP™) allows you to connect to common 120 or 240 V power receptacles without the use of any tools – simply chose the plug that fits the receptacle and connect it to the power cord.



Built-in Running Gear

No need to buy a cart, your Syncrowave 210 gives you maximum portability with an EZ-Change™ low cylinder rack and built-in storage space to better manage your accessories and easily transport everything you need for your project.



Fan-on-Demand™

Allows the fan to run up to 36% less to reduce the amount of contaminants pulled though the machine to help extend the life of the product. Learn More



14-Pin Controlled Operator Alternatives

The standard 14-pin connector on your Syncrowave 210 lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
