Tecna 7600-7660 Spotter

7600 60

This multi purpose portable welder is mainly used in car body repair. It allows:

  • Resistance welding of nails and washers for sheets straightening. Cuts the cost on body repairs, you do not need to remove interiors trims and fitments, double skin areas are easily repaired.
  • Resistance welding of screws and rivets.
  • Sheets localised heating

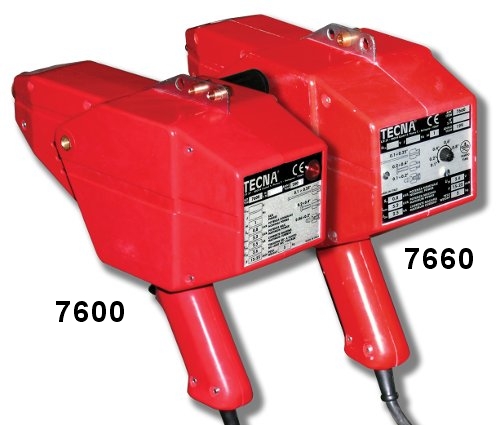

It is available in 2 versions:

  • Item 7600 - without timer
  • Item 7660 - with timer

Both are complete of handle (item 20002) and electrodes 7602-7603-7604.

example picture
Sheets straightening for quick car body repairs

Nails welding for noise and
temperature insulation panels

Welding of trim rivets

Welding of M4 screws fo fixing: cables, hoses, etc.

||||

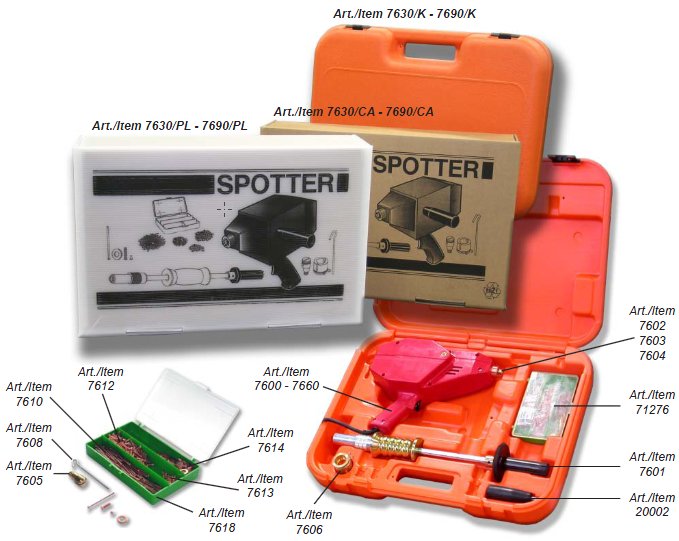

Electrodes and accessories::

ELECTRODES AND ACCESSORIES

Item 7601 Item 7601 - Slide hammer
Item 7602 Item 7602 - Electrode diameter 2.5 to weld nails diameter 2 and 2.5
Item 7603 Item 7603 - Electrode diameter 4 for screws
Item 7604 Item 7604 - Magnetic electrode for trim rivets welding
Item 7608 Item 7608 - Hook for washers, used with slide hammer
Item 7605 Item 7605 - Electrode for washers
Item 7606 Item 7606 - Electrode to be used with items 7605-7607
Item 7607 Item 7607 - Electrode for heating

NAILS, SCREWS AND TRIM RIVETS

Item 7610 Item 7610 - Nails diameter 2 x 50 mm - Package of 100 pieces
Item 7611 Item 7611 - Nails diameter 2.5 x 50 mm - Package of 100 pieces
Item 7612 Item 7612 - Screws M4 x 16, package of 100 pieces
Item 7613 Item 7613 - Trim rivets, package of 100 pieces
Item 7614 Item 7614 - Washers diameter 8 x 16 mm, package of 50 pieces

Downloads

DOWNLOADS

Available downloads for this product:







Specifications subject to change without notice.
