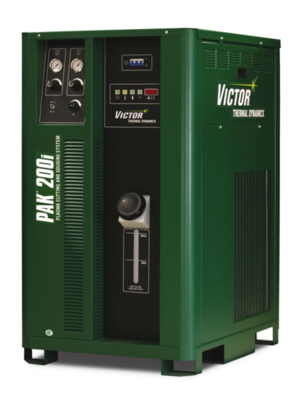

Thermal Dynamics PAK 200i

200 Pak 200i Plasma System, 200 Amp, PCH 200 Torch, 70 Deg Head, 25 ft Leads, 480V, 3ph, 50/60Hz

200 amps of Cutting Power – This unit is capable of hand cutting at 200 amps with the ability to cut up to 2-3/4" (70 mm) on Mild Steel. At full output this unit will cut 10 ipm (254 mm/min) on 2" (51 mm) carbon steel. 100% Duty Cycle – This machine offers 100% duty cycle at full output. Dual Gas Capability – The dual gas system ensures superior quality and performance on ferrous and non-ferrous materials. (Plasma Gas: Air, ArH2 Secondary Gas: Air, N2) High Gouging Removal Rate – With the ability to remove up to 25 lbs (11.3 kg) of carbon steel per hour. Tip Saver for Optimal Tip Life – This ensures that any accidental contact between the tip and the work at high power levels will not damage the tip.
Part Number: 1-2239
Warranty: • 2 Year parts & Labor Power Supply • 1 Year Parts & Labor Torch

Tip Saver Video

PERFORMANCE

  • Output Current - 35-200 Amps
  • Output Power - 40 kW
  • Recommended Cut - 1 1/2" (40 mm)
  • Max Cut - 2 3/4" (70 mm)
  • Pierce Rating - 1 1/4" (32 mm)

DIMENSIONS

  • 48" H x 27.5" W x 40.6" D (1219 x 698 x 1031 mm)

WEIGHT

  • 490 lbs w/o torch (222 kg) Fully Assembled Power Supply

INPUT VOLTS

  • 380-415V, 3 ph, 50/60 Hz
  • 400V CE, 3 ph, 50/60 Hz
  • 480V, 3 ph, 50/60 Hz

Contact Victor Technologies™ for additional information on 240V & 600V input voltage requirements.

DUTY CYCLE

  • 100% @ 200 Amps

AMPERAGE DRAW

  • 60A @ 380V
  • 57A @ 400V
  • 47A @ 480V

SPECFICATIONS

  • Plasma Gas - Air, ArH2, N2
  • Secondary Gas - Air, N2

TORCH

  • PCH200 Hand/Machine

WARRANTY

  • Power supply, 2-years parts & labor
  • Torch, 1-year parts & labor
Included Features • Power supply
• PCH200 70 Degree Torch with 25’ leads
• 20’ Work Cable with Ground Clamp
• Input power cable and torch coolant
• Spare Parts Kit
• Operating Manual
