C-HOG MILLHOG

MILLHOG ®

C-HOG MILLHOG





The C-Hog Beveling machine securely attaches to the tube O.D. with a huge clamp that minimizes chatter and vibration and is well suited for small bore tubes because there is no I.D. clamp or mandrel to interfere. The I.D. clearance gained also allows for large, tough I.D. boring blades that increase Cutter Blade endurance. Designed for maximum operator comfort, efficiency and ease of use, the C-Hog’s attached feed wrench lets the operator comfortably feed the tool as it bevels the tube with minimal fatigue. Constructed to deliver reliable performance on the toughest applications, the C-Hog is a rugged tool that is light weight and compact. Highly engineered, it incorporates state of the art materials and heat treated components.



PRODUCT DETAILS



 TECHNICAL DATA



Specifications

Working Range

0.5" I.D. - 3.0" O.D.
15.9mm I.D. - 76.2mm O.D.



Blade Series

 G-Series Blades
Min. Width 1.75"
57.2 mm

Length 9.7"
387.4 mm

 PneumaticElectricBattery
 1.07 hp
800 W
950 W18 V-5.2 ah
 90 psi
6.2 bar
120 V
220 - 240 V
120 V
220 - 240 V
 35 cfm
990 Lt/min
50/60 Hz50/60 Hz
Cutterhead speed114 rpm14-58 rpm43 rpm
Working Weight20.1 lbs
9.1 kgs
22.3 lbs
10.1 kgs
20.8 lbs
10.3 kgs
Shipping Weight40 lbs
18.1 kgs
46 lbs
20.9 kgs
46.6 lbs
21.1 kgs
Shipping Dimensions21" x 18" x 7"
533 x 457 x 178mm
17" x 31" x 8"
432 x 787  x 203mm
17" x 31" x 8"
432 x 787 x 203mm





 FEATURES

  • Narrow body 1.75" (44.45mm)
  • Large clamping surface rigidly holds tool for chatter-free bevels

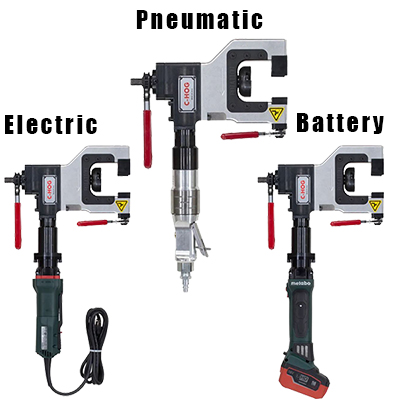

  • Powerful pneumatic, electric and battery motor options
  • No I.D. mandrel makes the C-Hog perfect for boring
  • Robust wrenches are securely attached
  • Changing clamps and other tooling is easy
  • Low maintenance
  • Compact, light weight and rugged
