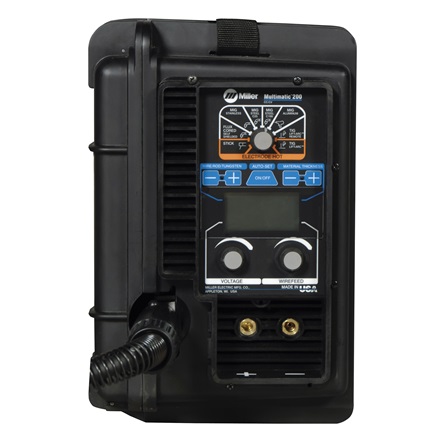

Miller Multimatic 200

Multimatic 200

The only all-in-one, portable, multiprocess power source from Miller is our most versatile machine to date. Weighing only 29 pounds (13.2 kg) and running on either 120 or 240 V, the Multimatic 200 can go anywhere you need to MIG, TIG or Stick weld.

Features

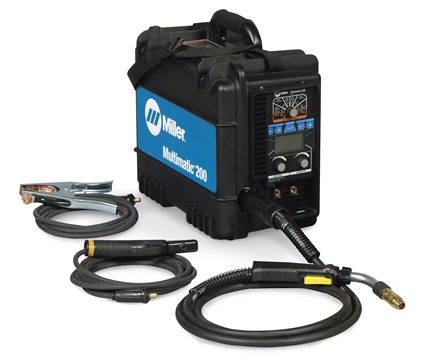

WHAT'S INCLUDED

  • Multimatic 200
  • Information/settings chart and quick setup guide
  • Argon and AR/CO2 mix regulator/flow gauge with 12-ft. (3.7 m) hose
  • Material thickness gauge #229895
  • Power cord and MVP plugs for 120 and 240 V
  • 10-ft. (3 m) Bernard® Q150 MIG gun
  • 13-ft. (4 m) lead with electrode holder and 25-mm Dinse connector
  • Dual-groove quick-change drive rolls for .024-in. (0.6 mm) or .030/.035-in. (0.8/0.9 mm) wire
  • Two contact tips for .030-in. (0.8 mm) wire, and two contact tips for .035-in. (0.9 mm) wire
  • 10-ft. (3 m) work lead with clamp and 25-mm Dinse connector
  •


NEW! Auto-Set™ Elite

Auto-Set Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings. Simple to set up and use!

Ultimate Durability
The Multimatic 200's impact-resistant case provides strength and durability, protecting the internal components and welding wire.

Excellent arc characteristics!
Multimatic 200 offers positive arc starts and an extremely stable arc with minimal spatter on both mixed gases and straight CO2.

Plugs in Anywhere!
Multi-voltage plug (MVP™) allows you to connect to common 120 or 230 V power receptacles without the use of any tools—choose the plug that fits the receptacle and connect it to the power cord.  Learn More

Simple Aluminum Solution
Spoolmate 100 direct-connect spool gun offers a reliable and economical solution for welding aluminum up to 1/4 inch with 4043 aluminum wire.

TIG Contractor Kit
The Multimatic 200 TIG Contractor Kit gives you everything you need for remote TIG welding with the Multimatic 200.

Fan-On-Demand
Miller's Fan-On-Demand technology operates only when needed reducing noise, power consumption and the amount of airborne contaminants pulled through the machine.  Learn More

Miller's Auto-Line Technology
Provides state-of-the-art flexibility, automatically connecting to 115 or 230 VAC, single-phase power without removing the cover to re-link the power source. See how it works.  Learn More
