XMT® 450 CC/CV

XMT® 450 Multiprocess Welder

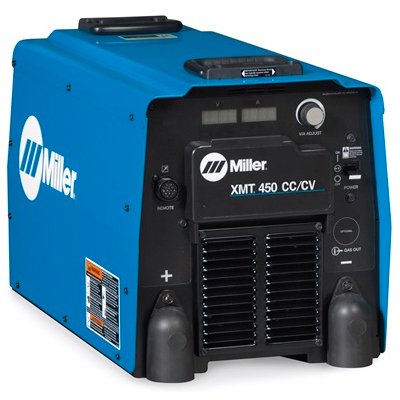

XMT® 450 CC/CV

907481





Portability and excellent arc performance make the XMT family the most popular in the industry. The XMT 350 CC/CV is the most popular model for its flexibility and simplicity.





 SPECIFICATIONS





PRODUCT LITERATURE

DC/18.94 XMT 450 Series - English

PROCESSES

Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW)
MIG (GMAW) Stick (SMAW)
TIG DC (GTAW-DC)



GENERAL SPECIFICATIONS

Title

XMT® 450 CC/CV 230/460 V

Industries Interests

Aerospace
Construction
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Boat / Yacht
High Purity Processing
Education / Training

Weldable Metals

Aluminum
Specialty Metals
Stainless Steel
Steel

Input Voltage

220/230/240 V
460/480 V

Rated Carbon Diameter

3/8 in (9.5 mm)

Input Phase

3-Phase

Input Hz

60 Hz

Input Amperage

3 Phase – 230 V (51 A), 460 V (27.6 A)

Current Type

DC

Max Open Circuit Voltage90 VDC
Portability

Handle(s)
Running Gear / Cart (Optional)

Weld Output

CC / CV



Net Width

14.5 in

Net Height

17.25 in

Net Length

27.125 in

Net Weight

122 lbs





 FEATURES



Auto-Line™ Power Management Technology

Allows for any input voltage hookup (208-575 VAC, single- or three phase) with no manual linking, providing convenience in any job setting,. Ideal solution for dirty or unreliable input power. Learn More



Advanced features for the professional welder

Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency.   Learn More



Standard 14-pin Receptacle

Has the flexibility to be used with spool guns, feeders, and remote controls.   Learn More



Welder friendly control panel

Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage. Large, dual digital meters are easy to view and presettable to ease setting weld output.



Reliability

Wind Tunnel Technology™ protects internal components, greatly improving reliability. Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine.   Learn More
