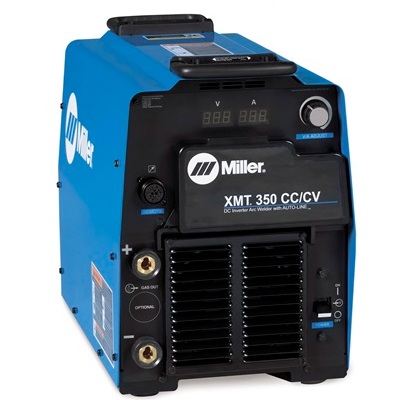

XMT® 350 CC/CV

XMT® 350 Multiprocess Welder

XMT® 350 CC/CV

907161





Portability and excellent arc performance make the XMT family the most popular in the industry. The XMT 350 CC/CV is the most popular model for its flexibility and simplicity.





 SPECIFICATIONS





PRODUCT LITERATURE

 DC/18.93 XMT 350 Series - English



PROCESSES

Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW)
MIG (GMAW) Stick (SMAW)
TIG DC (GTAW-DC)



GENERAL SPECIFICATIONS

Title

XMT® 350 CC/CV, Dinse

Industries Interests

Aerospace
Construction
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Boat / Yacht
High Purity Processing
Education / Training

Weldable Metals

Aluminum
Specialty Metals
Stainless Steel
Steel

Input Voltage

208 V
220/230/240 V
380/400/440 V
460/480 V
575 V

Rated Carbon Diameter

1/4 in (6.4 mm)

Input Phase

1-and 3-Phase

Input Hz

50/60 Hz

Input Amperage

3 Phase – 208 V (40.4 A), 230 V (36.1 A), 400 V (20.6 A), 460 V (17.8 A), 575 V (14.1 A)

Current Type

DC

Portability

Handle(s)
Running Gear / Cart (Optional)

Weld Output

CC / CV



Net Width

20 in

Net Height

16 in

Net Length

26 in

Net Weight

80 lbs





 FEATURES



Auto-Line™ Power Management Technology

Allows for any input voltage hookup (208-575 VAC, single- or three phase) with no manual linking, providing convenience in any job setting,. Ideal solution for dirty or unreliable input power. Learn More



Advanced features for the professional welder

Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency.  Learn More



Standard 14-pin Receptacle

Has the flexibility to be used with spool guns, feeders, and remote controls.

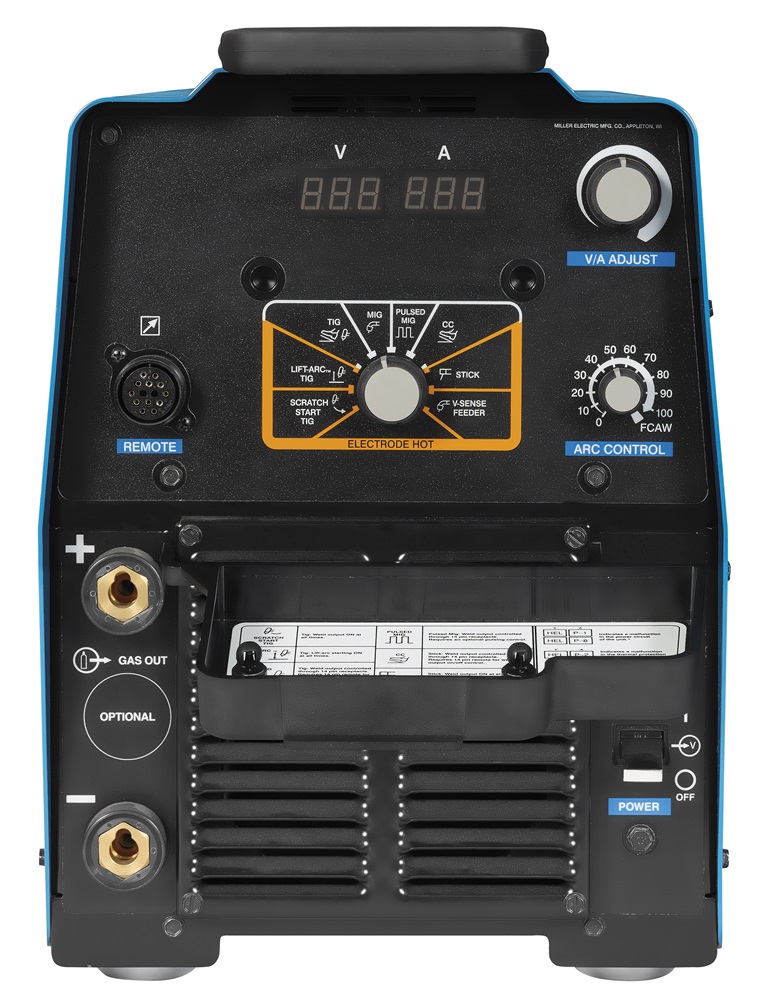

Welder friendly control panel

Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage. Large, dual digital meters are easy to view and presettable to ease setting weld output.



Output connector choices

Dinse- or Tweco®-style weld cable connectors provide high-quality weld cable connections. (Note: Two Dinse connectors are supplied with each Dinse machine. Tweco connectors must be ordered separately.)   Learn More


Reliability

Wind Tunnel Technology™ protects internal components, greatly improving reliability. Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine.   Learn More
