Pipeworx 400 Welding System 230/460V ​

951381





Simplified and optimized for pipe fabrication shop welding, the PipeWorx systems streamlined set-up with one touch welding, quick process changeover, and Pulsed and Modified Short-Arc MIG processes, makes training and turn-around times faster than ever before. Made in USA.





 SPECIFICATIONS





PRODUCT LITERATURE

 PWS/2.0 PipeWorx Welding System - English



PROCESSES

Air Carbon Arc Cutting and Gouging (CAC-A) Stick (SMAW)
Flux Cored (FCAW) MIG (GMAW)
TIG DC (GTAW-DC) Pulsed MIG (GMAW-P)
RMD



GENERAL SPECIFICATIONS

Title

Pipeworx 400 Welding System 230/460 V

Industries Interests

Construction
Shipbuilding
High Purity Processing
Fabrication
Mechanical Contracting
Pipe Fabrication / Construction
Pressure Vessel
Education / Training

Material Thickness

Mild Steel
Steel
Aluminum
Stainless Steel
Unitless Thickness Display

Weldable Metals

Specialty Metals
Stainless Steel
Steel

Input Voltage

220/230/240 V
460/480 V

Input Phase

3-Phase

Input Hz

50/60 Hz

Current Type

DC

Rated Carbon Diameter

5/16 in (7.9 mm)

Max Open Circuit Voltage

90 VDC

Amperage RangeAmperage Min Max
Wire Feed Speed

IPM Range
Min Range
SubArc Wire Feed Speed

PortabilityLift Eye (Standard)
Running Gear / Cart (Standard)
Weld OutputCC / CV



Net Weight

225 lbs (102 kg) (Power Source)





 FEATURES


WHAT'S INCLUDED
  • PipeWorx 400 Power Source, 230/460V

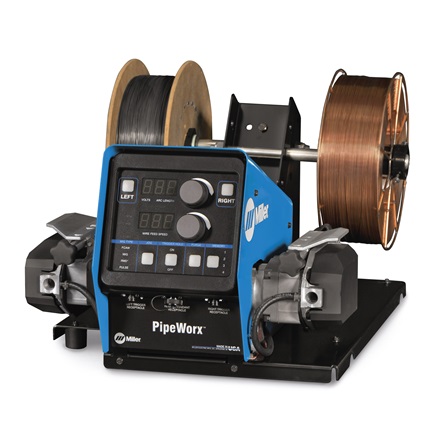

  • PipeWorx Dual Feeder with drive rolls (300366)
  • Two 15 ft (4.6 m) PipeWorx 300A MIG Guns (195400)
  • Side-mount Cable Hangers
  • Cable Kit with 25ft. (7.6m) Work Sense Lead (300367)
  • Running Gear with Dual Cylinder Rack (300368)



Simple Process Setup
  • Clearly labeled controls in easy-to-understand welder terminology.
  • Requires just a few basic steps to set up a new weld process, resulting in less training time and minimizing errors from incorrect setups.

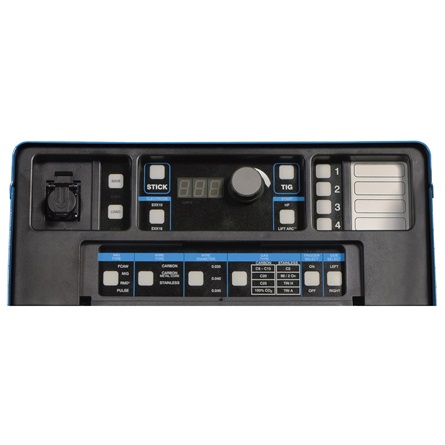

  • The front panel was designed by welders for welders. Only backlit controls are adjustable to eliminate confusion.
  • Memory feature stores four programs for each selection: Stick, DC TIG, and MIG (left and right side of feeder). Beneficial when using multiple procedures, multiple process parameters or multiple welders and eliminates the need to remember parameters.



Quick Process Changeover
  • No need to manually switch polarity or cables and hoses between processes. Simply push a process selection button to choose a welding process. PipeWorx 'Quick-Select' technology automatically selects the welding process, the correct polarity, cable outputs and welding parameter.
  • Quick process changeover eliminates set-up time for switching cables and gas hoses. Also, reduces the risk of weld reworks due to incorrect cable connection.



Multiprocess Machine
  • Weld processes are optimized to deliver superior arc performance and stability specifically for root pass, fill and cap pipe welding.
  • Includes conventional Stick, DC TIG (Lift-ARC™ or HF Start), Flux-Cored and MIG welding processes.
  • Also features the advanced RMD® and Pulsed MIG processes that deliver superior quality welds, increase productivity, and reduce rework and training.



Streamlined System
  • Wind Tunnel Technology™ and Fan-On-Demand™ provide system protection in the dusty shop environment.
  • Innovative cable and gun storage manages clutter for a cleaner, organized weld-cell area. Cables remain connected to the power source and do not need to be switched for the different welding processes.
  • All system components have been selected to meet the needs of a pipe fabrication shop.



PipeWorx ROI Calculator

The PipeWorx ROI calculators are designed to help you determine your unique return on investment and payback based on your shop and utilizing the savings that PipeWorx Welding System delivers.
