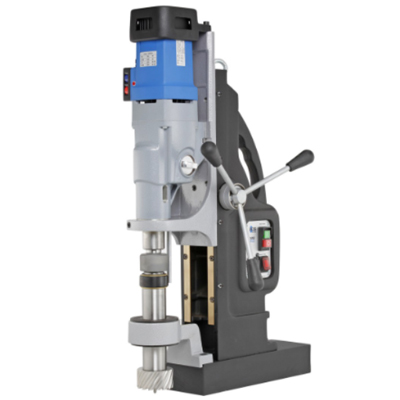

MAB 1300

ProfiPlus

MAB 1300





THE STRONGEST OF THE STRONG

Superior performance with exceptional power delivery. Equipped with Servo Assist Power Feed, which works like a power steering of a car, making the drilling effortless.

Pure power! 2,300 W motor power, four speeds and a full package of features leave nothing to be desired. The MAB 1300 magnetic drilling machine goes to the limit of magnetic core drill technology

  •  Servo Assist Power Feed
  •  Overheating protection
  •  Speed & torque control
  •  reversible motor
  •  Magnet indicator
  •  Full wave control electronics
  •  Safety friction clutch
  •  Heavy duty carry case with rollers


PRODUCT DETAILS


Core drill
 Thread Cutting
 Powerful Motor
 Weight

 130 mm

M 42

2300 Watt

 51 Kg





 TECHNICAL SPECIFICATIONS



Motor output

2,300 W, 20 A

Voltage, V AC

230-110/125 V AC

Core drill cutting depth max.

110 mm ; 4-21/64"

Core drill max. Ø HSS/TCT

130 mm ; 5-1/8"

Twist drill45 mm ; 1-49/64"
Reaming50 mm ; 1-31/32"
Countersinking80 mm ; 3-5/32"
Thread cutting42 mm ; 1.65"
Stroke85/310 mm ; 12-13/64"
Magnet dimensions120 x 360 x 67 mm
Weight51 kg / 112.43 lbs.
Spindle taperMT 4
Arbor

Direct arbor 32 mm Weldon 1 1 /4 ”

KEYLESS 19 mm Weldon 3/4 inch---
Speed gears4
Gear 1 range30 – 80 rpm
Gear 2 range50 - 120 rpm
Gear 3 range130 - 350 rpm
Gear 4 range210 - 550 rpm
Permanent internal lubrication
Safety clutch
Torque control
Full-wave control electronics

Magnetic Indicator
Overheating protection
Clockwise/anticlockwise rotation
Carbon brush wear control
