BDS MAB-525

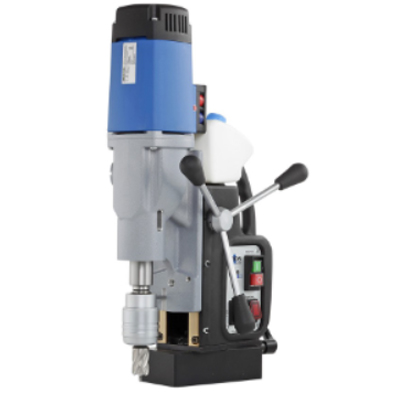

BDS MAB-525, Made in Germany

The Made in Germany MAB 525 magnetic drill press Robust and lightweight! With two-stage oil bath gearbox,thread cutting up to M 20. The advantages of the MAB 525 > Best choice for service work: Total weight only 16 kg > With MT 3 tool holder and a drilling performance of up to ø 50 mm > Torsion-resistant design, monoblock gearbox and slide Powerful & Reliable 14.5 Amp double-insulated motor 19" high, 35 lbs. High-speed, 2-speed oilbath gearbox, ideal for annular cutters and twist drills Designed for continuous use Intelligent electronic torque control Drill up to 2-1/2" dia. & tap up to 15/16" dia. Uses annular cutters Twist drilling up to 1" diameter (with optional chuck IBC 21) Tapping capacity 15/16" Integrated cutting oil reservoir Automatic internal lubrication Swivel base (model MAB 525 SB) Keyless Cutter Mount Quick-change keyless cutter system for 3/4" Weldon shank Integrated Safety Green/Red LED magnetic force indicator for safe operation Internal cable routing Simple, ergonomic arrangement of controls for one-handed operation Emergency-off function



50 mm

Drilling Capacity

M 20

Tapping Capacity

1600 Watt

Powerful Motor

16 Kg

Weight



TECHNICAL SPECS

 Core drill short 30 mm

12-50 mm

 Core dril long 55 mm

12-50 mm

 Core drill extra-long 110 mm

18 -50 mm

 Thread cutting

<= M20

 Countersinking

<= 50 mm

 Reming

<= 20 mm

 Twist drilling

<= 20 mm

 Friction clutch

Yes

 Permanent internal lubrication

Yes

 Speed range 4

----

 Speed range 3

----

 Speed range 2

180 - 580 min-1

 Speed range 1

70 - 280 min-1

 Morse taper

MT 3

 Quick change drill chuck-system

Keyless 19 mm

Industrial arbor

----

Direct arbor

----

Weight

16 kg

Magnet Size

90 x 180 x 48,5 mm

Stroke

160 mm

Voltage

230 V AC , 50-60Hz

Motor Output

1600 Watt

Swivel Base

No

Carbon brush wear control

Yes

CW/CCW rotation

Yes

Overheating protection

Yes

Magnet indicator

Yes

Full wave control electronics

Yes

Torque Control

Yes
